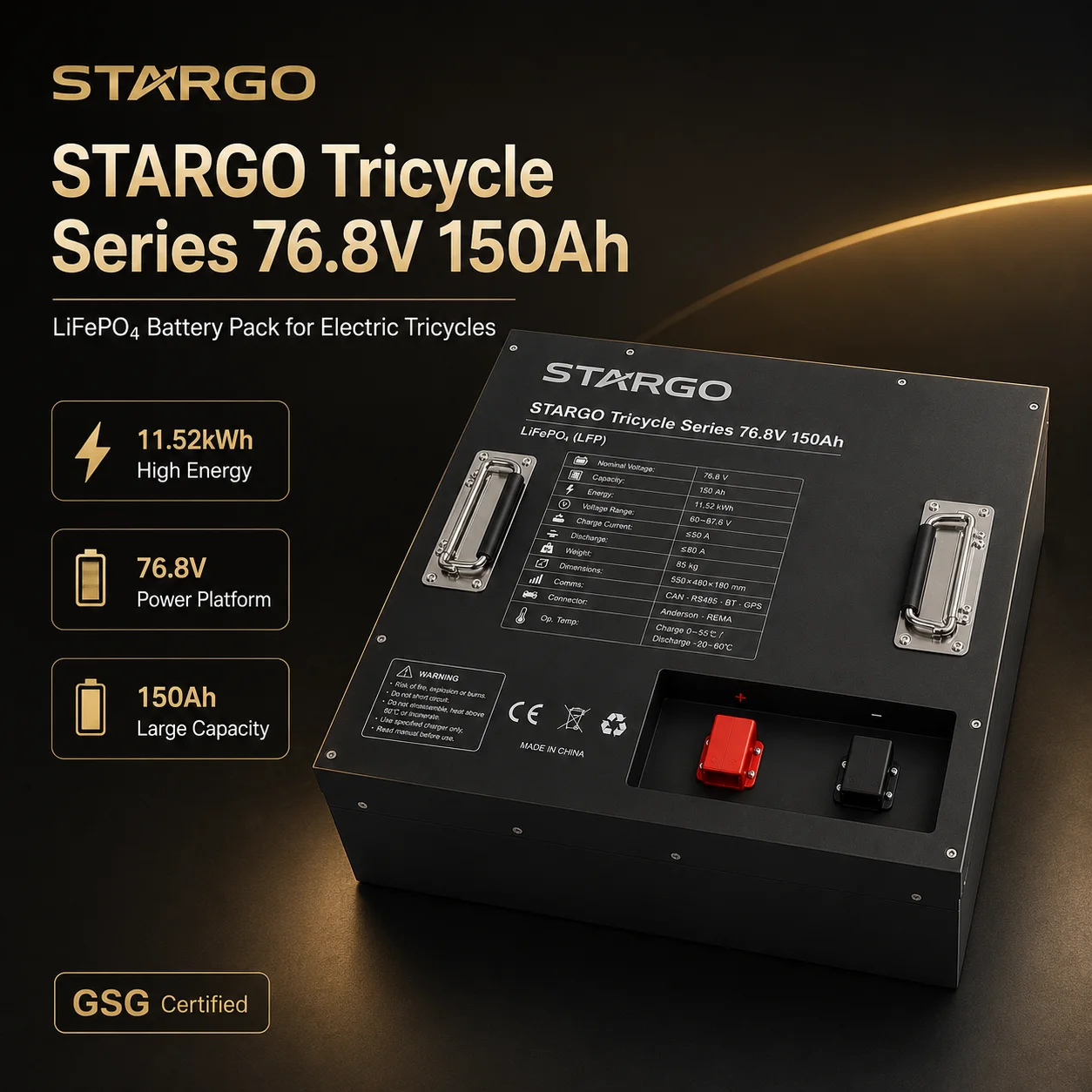

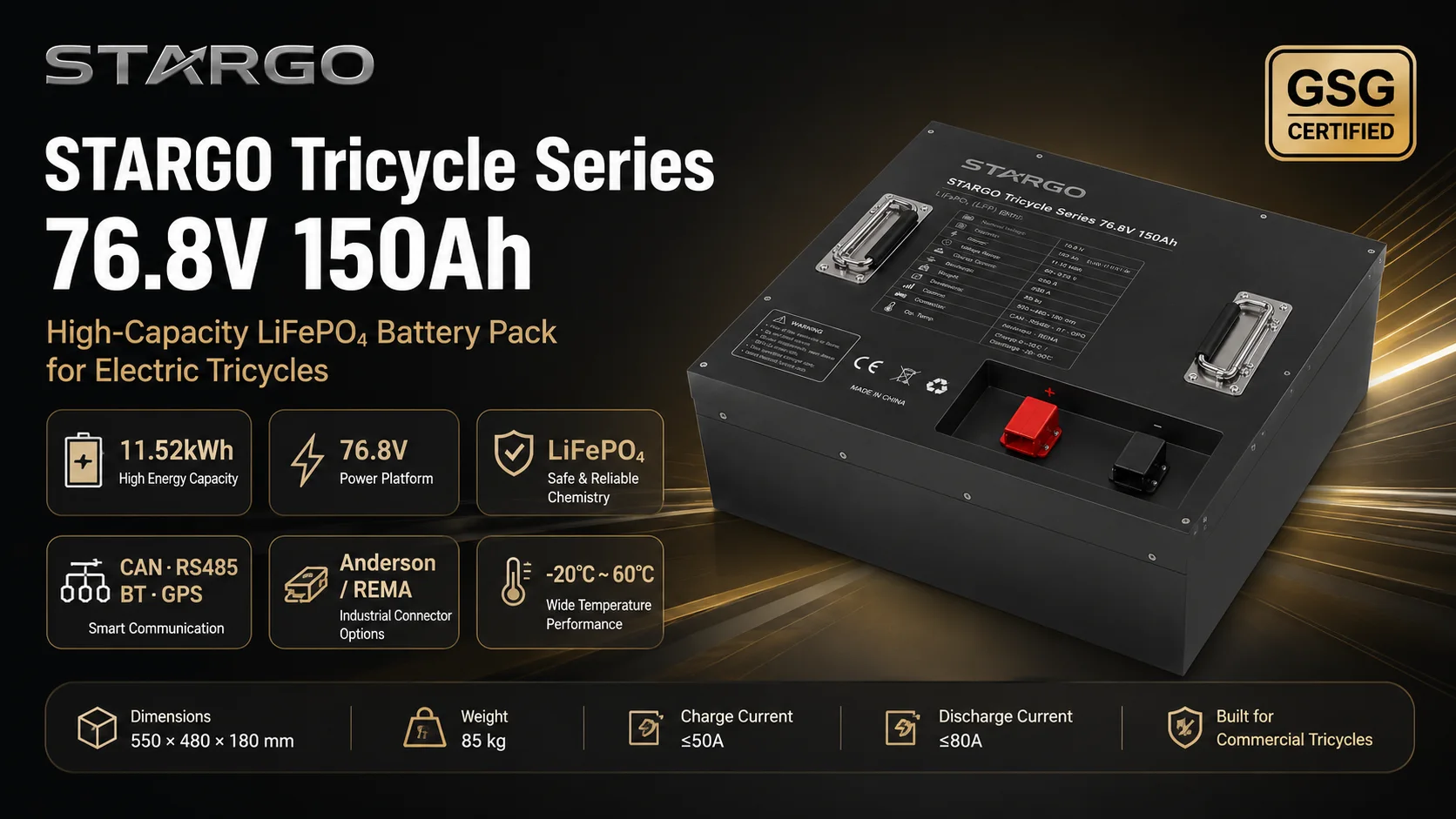

E-Tricycle 76.8V 150Ah
76.8V largest tricycle · 11.52 kWh
STARGO E-Tricycle 76.8V 150Ah is a LiFePO₄ electric two-wheel / three-wheel vehicle battery battery for global dealers, importers and fleet operators — supplied by Stargo, quoted to order with UN38.3 + MSDS export documentation.
E-Tricycle 76.8V 150Ah — key specifications
- Voltage: 76.8V
- Capacity: 150Ah
- Energy: 11.52 kWh
- Weight: 85kg
Full parameter table
| Cell chemistry | LiFePO4 (LFP) |
|---|---|
| Nominal voltage | 76.8V |
| Rated capacity | 150Ah |
| Rated energy | 11.52kWh |
| Voltage range | 60~87.6V |
| Charge current | ≤50A |
| Discharge current | ≤80A |
| Weight | 85kg |
| Dimensions | 550 × 480 × 180 mm |
| Comms · connectors | CAN / RS485 / BT / GPS · Anderson / REMA |
| Operating temperature | 充 0~55℃ / 放 -20~60℃ |
Warranty, certification & shipping
- Warranty: TBC — confirmed per order and target market
- Cycle life: TBC — see category notes; confirmed per configuration
- Certification: GSG Certified · UN38.3 / MSDS — availability confirmed per model & configuration
- Export notes: Air (IATA) and sea (IMDG) dangerous-goods rules apply; STARGO advises the correct document set per shipping route.
- Compatible platforms: TBC — matched at quotation
Key selling points
- Massive 11.52kWh Energy Core — Engineered on a stable 76.8V 150Ah platform to deliver 11,520Wh (11.52kWh) of high-density energy, providing a continuous and powerful energy reservoir for long-range commercial tricycle fleets.
- Professional 76.8V High-Voltage Power — Delivers superior torque and system efficiency compared to standard low-voltage packs, optimized for heavy-duty cargo transport and demanding urban delivery scenarios.
- Smart Four-in-One Connectivity — Features a comprehensive communication suite including CAN, RS485, Bluetooth, and GPS, supporting seamless integration with vehicle controllers and remote fleet-level asset management systems.
- Industrial Grade Connector System — Equipped with professional Anderson/REMA connector options and a rugged, compact flat-profile metal enclosure, designed to meet the rigorous installation demands of modern tricycle platforms.
- Global GSG Certified Reliability — Fully GSG certified with ultra-safe LiFePO4 chemistry and a wide operational temperature range (Discharge: -20°C to 60°C), meeting the highest safety standards for professional international B2B procurement.
Applications
- E-scooters & e-motorcycles
- Passenger tricycles
- Cargo tricycles
- Agricultural machinery
B2B / request-quote — no online checkout. Export requires a UN38.3 test report and MSDS; air/sea freight follows IATA / IMDG dangerous-goods rules. Contact STARGO for a quote.
