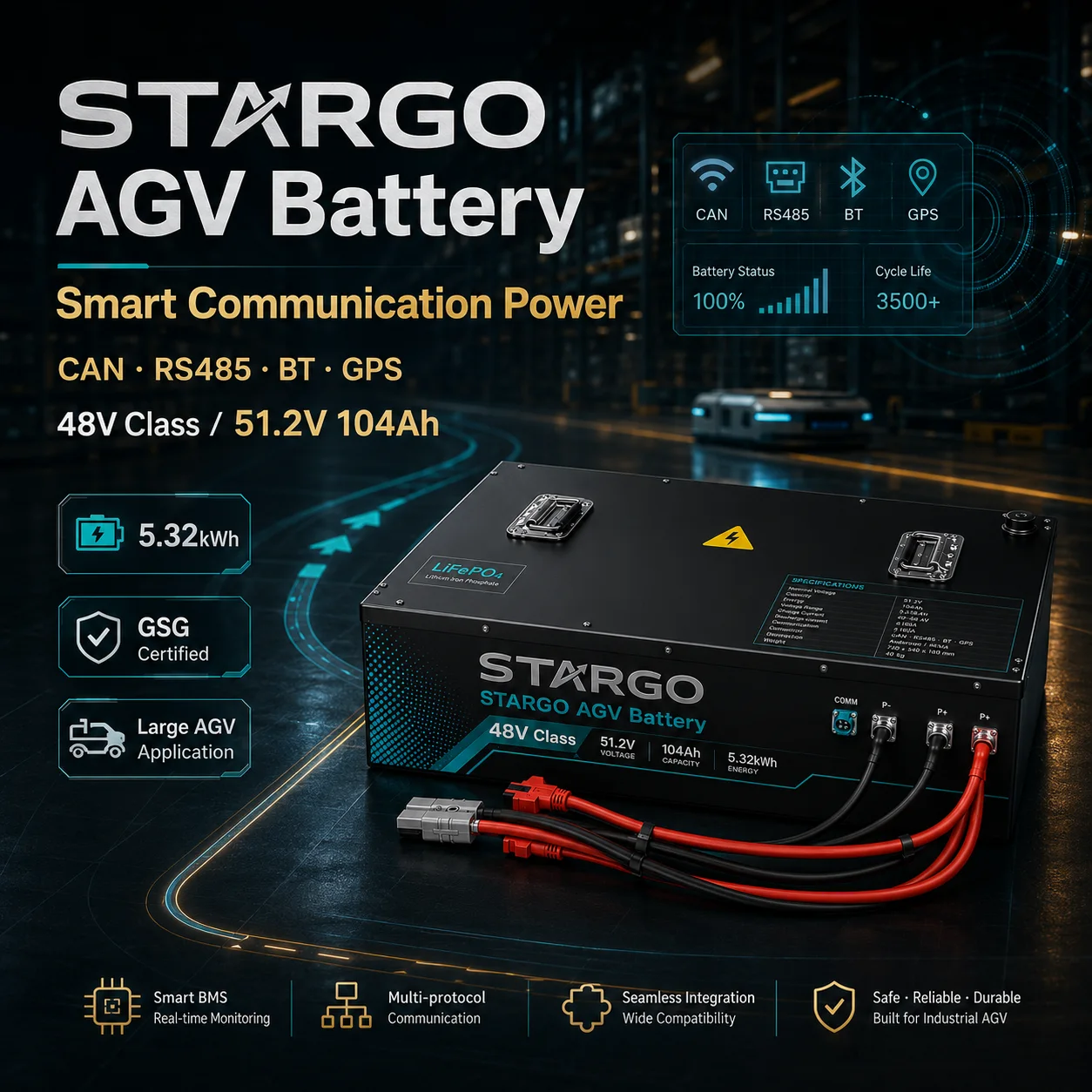

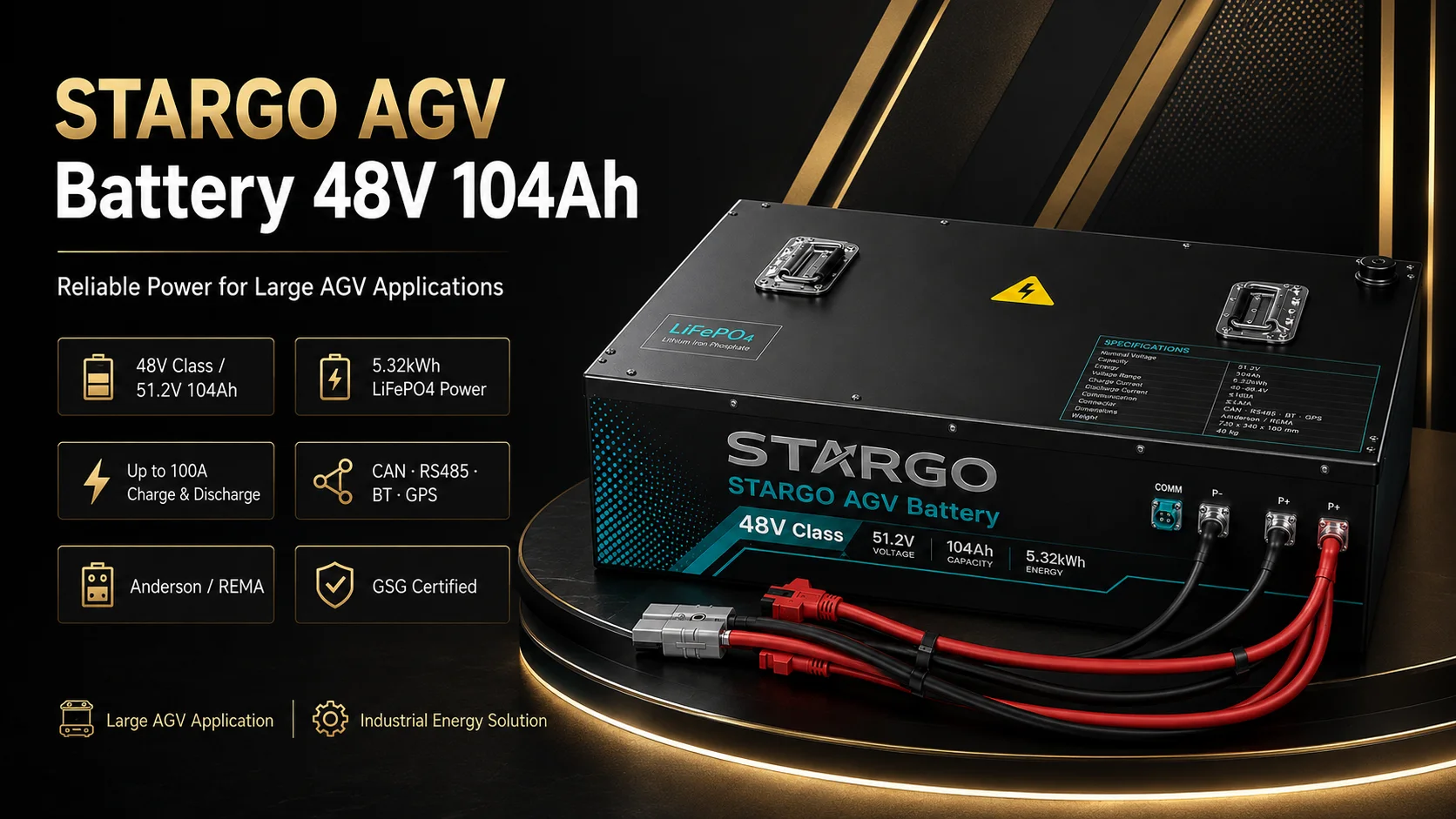

AGV Pack 48V 104Ah
48V 104Ah LiFePO4 pack — large AGV · 5.32 kWh
STARGO AGV Pack 48V 104Ah is a LiFePO₄ agv / mobile robot battery battery for global dealers, importers and fleet operators — supplied by Stargo, quoted to order with UN38.3 + MSDS export documentation.
AGV Pack 48V 104Ah — key specifications
- Voltage: 48V
- Capacity: 104Ah
- Energy: 5.32 kWh
- Weight: 40 kg
Full parameter table
| Cell chemistry | LiFePO₄ (LFP) |
|---|---|
| Nominal voltage | 51.2 V |
| Rated capacity | 104 Ah |
| Rated energy | 5.32 kWh |
| Voltage range | 40–58.4V |
| Charge current | ≤100A |
| Discharge current | ≤100A |
| Weight | 40 kg |
| Dimensions | 720 × 340 × 180 mm |
| Comms · connectors | Anderson / REMA |
| Operating temperature | 充 0~55℃ / 放 -20~60℃ |
Warranty, certification & shipping
- Warranty: TBC — confirmed per order and target market
- Cycle life: TBC — see category notes; confirmed per configuration
- Certification: UN38.3 / MSDS — availability confirmed per model & configuration
- Export notes: Air (IATA) and sea (IMDG) dangerous-goods rules apply; STARGO advises the correct document set per shipping route.
- Compatible platforms: TBC — matched at quotation
Key selling points
- High-Density 5.32kWh Energy Reservoir — Specifically engineered with 48V 104Ah LiFePO4 cells to deliver a robust 5.32kWh output, providing extended runtime for heavy-duty AGV and AMR fleets.
- Quad-Protocol Intelligent Connectivity — Fully integrated with CAN, RS485, Bluetooth, and GPS tracking, enabling seamless data communication and remote fleet management for smart logistics.
- Heavy-Duty 100A Power Management — Features a professional 100A smart BMS, supporting high-current charging and discharging up to 100A to handle intensive industrial workloads effortlessly.
- Low-Profile Industrial Integration — Boasts a compact, low-profile design (720mm length) for easy installation in robot chassis, compatible with standard Anderson and REMA industrial connectors.
- Global GSG Certified Quality — Fully GSG certified with a rugged industrial-grade enclosure and premium LFP chemistry, offering a safe, stable, and trusted power core for high-stakes automated environments.
Applications
- AGV automated vehicles
- AMR mobile robots
- Automated warehouses
- Smart-factory logistics
B2B / request-quote — no online checkout. Export requires a UN38.3 test report and MSDS; air/sea freight follows IATA / IMDG dangerous-goods rules. Contact STARGO for a quote.
Compare across the range
- AGV Pack 24V 52Ah: 24V · 52Ah · 1.33 kWh
- AGV Pack 48V 87Ah: 48V · 87Ah · 4.17 kWh
- AGV Pack 48V 104Ah: 48V · 104Ah · 5.32 kWh (viewing)
More in this category
- AGV Pack 24V 52Ah: 24V 52Ah LiFePO4 pack — small AGV/AMR · 1.33 kWh. 24V · 52Ah · 1.33 kWh
- AGV Pack 48V 87Ah: 48V 87Ah LiFePO4 pack — mid AGV · 4.17 kWh. 48V · 87Ah · 4.17 kWh
Quote the AGV Pack 48V 104Ah
Confirm capacity, connector, quantity and export documents for your market. Typical response within 24 business hours. Request a battery quote · Browse all batteries
